Belt Conveyors

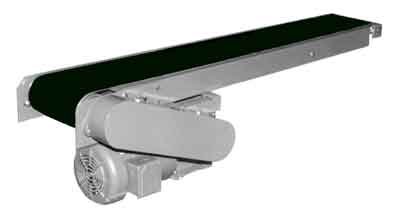

3" Box Frame

View PDF Brochure

Specifications

Widths: 4" Thru 24" Belt

Bed: 6" Thru 22" Wide x 3" Deep x 12 Ga Steel Box Channel Slider Bed

Head Pulley: 4" Dia Machine Crowned, 1" Dia Shaft

Tail Pulley: 2" Dia Machine Crowned, 3/4" Dia Shaft

Bearings: Anti-Friction Ball Bearing

Drive: Top or Bottom Mount, Roller Chain From Reducer to Headshaft

Motor: 1725 RPM, 56 C-Face, TEFC, Wired 115/230-60-1 or 230/460-60-3

Reducer: Right Angle 56 C-Face

Belt: Smooth or Ruff Top PVC

Controls: As Required
