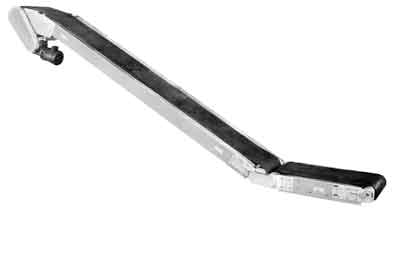

Inclined Belt Conveyors

6" Box Frame

View PDF Brochure

Specifications

Widths: 12" Thru 72" Belt

Bed: 15" Thru 75" Wide x 6" Deep x 12 or 10 Ga Steel Box Channel Slider Bed

Head Pulley: 6", 9" or 12" Dia Crowned Lagged; 1 3/16", 1 7/16" or 1 15/16" Dia Shaft

Tail Pulley: 4" or 6" Dia Crowned; 1", 1 3/16" or 1 7/16" Dia Shaft

Bearings: Anti-Friction Ball Bearing

Drive: End or Center Drive, Roller Chain From Reducer to Headshaft

Motor: 1725 RPM, 56 C-Face, TEFC, Wired 115/230-60-1 or 230/460-60-3

Reducer: Right Angle 56 C-Face

Belt: Smooth or Ruff Top PVC

Controls: As Required
