Cable / Trolley Conveyors

View PDF Brochure

Specifications

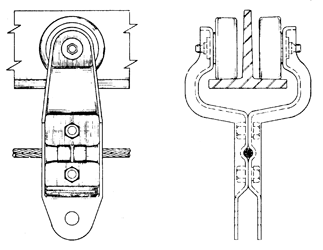

Trolleys: 150 Pound Capacity, Sealed or Open

Cable Lengths: 1/4" Dia x 6", 12" & 18" Long, Swaged Ends

Track: 2" x 2" x 1/4" Tee

Vertical Bends: 48" Thru 96" Radius x 15° Thru 60°

Horizontal Turns: 20 1/4", 27 3/4" & 36" PD x 45°, 90°, & 180° Traction Wheel

Take-Up: Screw or Spring Type, Traction Wheel

Drive: 1000 Pound, 26 3/4" PD 90° & 180° Sprocket Drive, 3:1 Variable Speed

Motor: 1725 RPM, 48 Frame, Open DP, Wired 115/230-60-1 or 230/460-60-3

Controls: As Required
