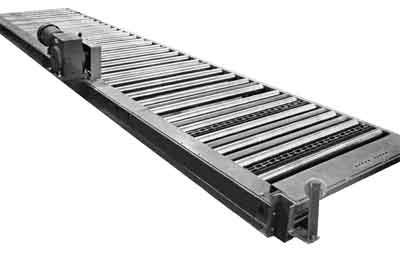

Chain Driven Live Roller
View PDF Brochure
| Specifications | 1.9" Dia |
2 1/2" Dia |
3 1/2" Dia |
| Capacity - Per Roll | 250 Lbs |
500 Lbs |
1800 Lbs |
| Widths - Effective | 12" - 45" |
21" - 63" |
33" - 75" |
| Frame - Formed / Stru Channel | 4 1/2" & 6" x 10 Ga |
4" & 6" Stru |
5" & 8" Stru |
| Rollers | 1.9" Dia x 13 Ga |
2 1/2" Dia x 11 Ga |
3 1/2" Dia x .300 |
| Chain | Continuous RC-40 |
Roll-to-Roll RC-60 |
Roll-to-Roll RC-80 / 100 |
| Bearings | Anti-Friction Ball Bearing |
||
| Drive | Side Mount Drive, Roller Chain From Reducer to Roller Sprocket |
||
| Motor | 1725 RPM, 56 C-Face, TEFC, Wired 230/460-60-3 |
||
| Reducer | Right Angle 56 C-Face |
||
| Controls | As Required |
||
