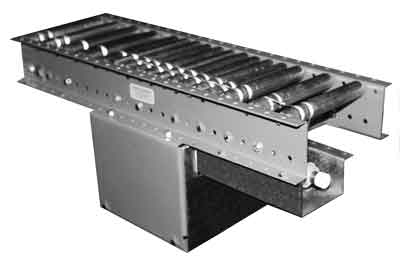

Line Shaft Driven Live Roller
View PDF Brochure
| SPECIFICATIONS | 1 3/8" Dia |
1.9" Dia |
2 1/2" Dia |
| Capacity - Per Roll | 7 - 15 Lbs |
15 - 30 Lbs |
80 - 150 Lbs |
| Widths - Overall | 12" - 30" |
12" - 48" |
24" - 60" |
| Frame - Formed Steel Channel | 4 1/2" x 10 Ga |
4 1/2" x 10 Ga |
9" x 7 Ga |
| Rollers - Spring Loaded Axles | 1 3/8" Dia x 18 Ga |
1.9" Dia x 16 Ga |
2 1/2" Dia x 11 Ga |
| Drive Belts - Urethane O-Ring | 1/8" Dia |
3/16" Dia |
1/4" Dia |
| Line-Shaft | 1" Dia |
1" Dia |
1 7/16" Dia |
| Bearings | Anti-Friction Ball Bearing |
||
| Drive | Bottom Mount Drive, Roller Chain From Reducer to Line-Shaft |
||
| Motor | 1725 RPM, 56 C-Face, TEFC, Wired 230/460-60-3 |
||
| Reducer | Right Angle 56 C-Face |
||
| Controls | As Required |
||
