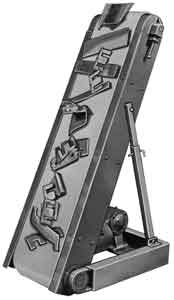

Magnetic Belt Conveyors

Inclined

View PDF Brochure

Specifications

Widths: 6" Thru 24" Belt

Frame: 6" Deep x 12 Ga Steel, SS Slider Bed, Alnico Permanent Magnet Castings

Head Pulley: 6" Dia Permanent Magnet, 1" Dia Shaft

Tail Pulley: 6" Dia, 1" Dia Shaft

Bearings: Anti-Friction Ball Bearing

Drive: Bottom Mount, Roller Chain From Reducer to Drive Shaft

Motor: 1725 RPM, 56 C-Face, TEFC, Wired 115/230-60-1 or 230/460-60-3

Reducer: Right Angle 56 C-Face

Belt: Smooth Black Neoprene

Base: 3" Structural Channel

Controls: As Required
