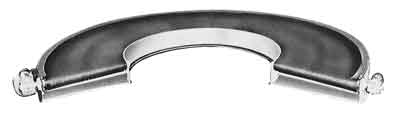

Powered Belt Turn

View PDF Brochure

Specifications

Widths: 4" Thru 48" Effective Belt x 15° To 350° Arc

Bed: 6.5" Thru 12" Deep x 12 Ga Mild Steel or Stainless Steel Box Slider Bed

Drive Pulley: Tapered Pulley with Sprocket; 1", 1 3/16" or 1 7/16" Dia Shaft

Tail Pulley: Tapered Pulley with Sprocket; 1", 1 3/16" or 1 7/16" Dia Shaft

Bearings: Anti-Friction Ball Bearing

Drive: Side Mount

Motor: 1725 RPM, 56 C-Face, Open DP, Wired 230/460-60-3

Reducer: Shaft Mounted 56 C-Face

Belt: Black Nitrile, FS x FS, Clipper Lacing, #50 Sidebow Chain

Controls: As Required
