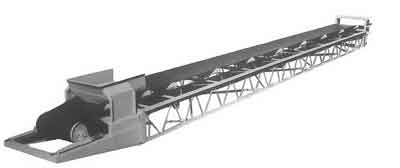

Trough Belt Conveyors

Truss Frame

Specifications

Widths: 12", 18" & 24" Belt

Frame: 18" Deep Truss

Idlers: 3" Dia X 13 Ga Steel, 25° Dual Roll, 3/4" Dia Shafts

Head Pulley: 13" & 18" Dia Crowned Lagged, 1 15/16" To 2 7/16" Dia Shaft

Tail Pulley: 10" Dia Crowned, 1 11/16" Dia Shaft

Bearings: Anti-Friction Ball Bearing

Drive: Top Mount, V-Belts From Motor to Reducer

Motor: 1725 RPM, Straight Drive, TEFC, Wired 230/460-60-3

Reducer: Shaft Mounted

Belt: 1-Ply & 2-Ply Nylon, 1/32" x 1/32" Covers

Controls: As Required
