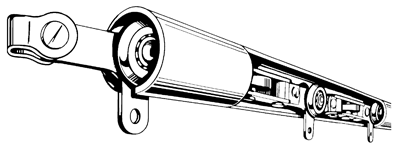

Tubular Chain Conveyors

View PDF Brochure

Specifications

Chain: Stamped Alloy Steel, Heat Treated, Zinc Plated Chain; Twin Load Carrying Wheels, Single Side Guide Wheels

Track: 1 7/8" OD High Strength Steel Tubing

Vertical Curves: 18" Thru 24" Radius x 15° Thru 60°

Horizontal Curves: 9" Thru 36" Radius x 15° Thru 180°

Take-Up: Spring Type

Drive: 600 Pound Capacity Caterpillar, Fixed or Variable Speed

Motor: 1725 RPM, 56 C-Face, TEFC, Wired 115/230-60-1 or 90 Volt DC

Reducer: Right Angle 56 C-Face

Controls: As Required
