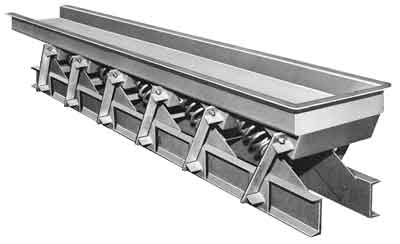

Vibrating Conveyors

Coil Spring

Specifications

Widths: 18" To 48" Pan

Pan: 3/8" & 1/2" Thick, Mild Steel

Springs: Alloy Steel Coil Spring, 1" Stroke @ 45 FPM

Frame: Structural Steel Channel

Drive: Center or End Drive, Eccentric Drive Shaft, Positive Connecting Arm, Steel Encased Rubber Bushing, Spherical Roller Bearings

Motor: 1725 RPM, Straight Drive, NEMA-B, TEFC, Wired 230/460-60-3

Controls: As Required
