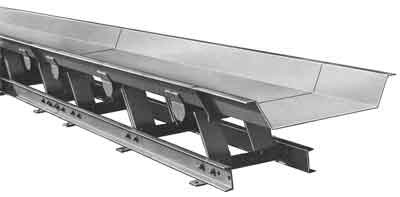

Vibrating Conveyors

Leaf Spring

Specifications

Widths: 18", 24", 30" & 36" Pan

Pan: 1/4" & 5/16" x 6", 9" & 12" Deep, High Strength Low Alloy Steel

Springs: Filament Reinforced Plastic Leaf Springs, 5/8" Stroke @ 560 RPM

Frame: 5" Structural Steel Channel

Drive: Center or End Drive, Eccentric Drive Shaft, Positive Connecting Arm, Steel Encased Rubber Bushing, Spherical Roller Bearings

Motor: 1725 RPM, Straight Drive, NEMA-B, TEFC, Wired 230/460-60-3

Controls: As Required
