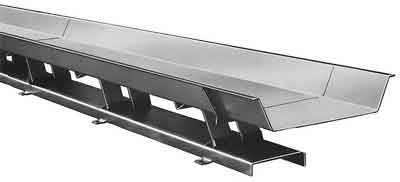

Vibrating Conveyors

Leaf Spring

Specifications

Widths: 18" & 24" Pan

Pan: 3/16" x 6" & 9" Deep, High Strength Low Alloy Steel

Springs: Filament Reinforced Plastic Leaf Springs, 9/16" Stroke @ 585 RPM

Frame: 13" Formed Steel Channel

Drive: Center or End Drive, Eccentric Drive Shaft, Positive Connecting Arm, Steel Encased Rubber Bushing, Spherical Roller Bearings

Motor: 1725 RPM, Straight Drive, NEMA-B, TEFC, Wired 230/460-60-3

Controls: As Required
