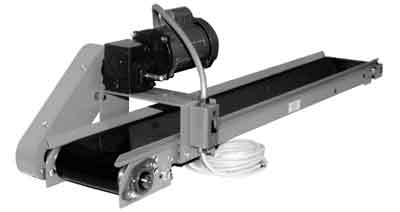

Low Profile Die-Veyors

2" Frame

Heavy Duty

View PDF Brochure

Specifications

Widths: 2" Thru 24" Belt

Frame: 1/4" x 2" Steel Side Rails, Welded Steel Slider Bed

Head Pulley: 3 1/2" Dia Machine Crowned, 1" Dia Shaft

Tail Pulley: 2" Dia Machine Crowned, 3/4" Dia Shaft

Bearings: Anti-Friction Ball Bearing

Drive: Top or Bottom Mount, Roller Chain From Reducer to Headshaft

Motor: 1/3 HP, 1725 RPM, 56 C-Face, TEFC, Wired 115/230-60-1

Reducer: Right Angle 56 C-Face

Belt: Smooth or Ruff Top PVC

Guard Rail: 1" x 12 Ga Flared

Controls: 110-V Toggle Starter, Thermal Overload, Cable & Plug Mounted & Wired
